Interlocking Steel Barricade

FOB Reference Price:Get Latest Price
$20.00 - $100.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
DL-B-02
Lead Time:
Quantity(Sets) 1 - 50 51 - 100 >100
Est. Time(days) 7 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
Dpair
Product name:
Crowd Control Barrier
Material:
Stainless Steel
Color:
Silver
Application:
Widely Used
Surface treatment:
Galvanized + Powder Coated
Feature:
High Durable
Advantage:
portable
Supply Ability
Supply Ability:
100 Set/Sets per Week
Packaging & Delivery
Packaging Details
standard package or packing according to customer requirements
Port
tianjin port
Lead Time :
Quantity(Sets) 1 - 50 51 - 100 >100
Est. Time(days) 7 15 To be negotiated

Crowd Control Pedestrian Barrier

Product description

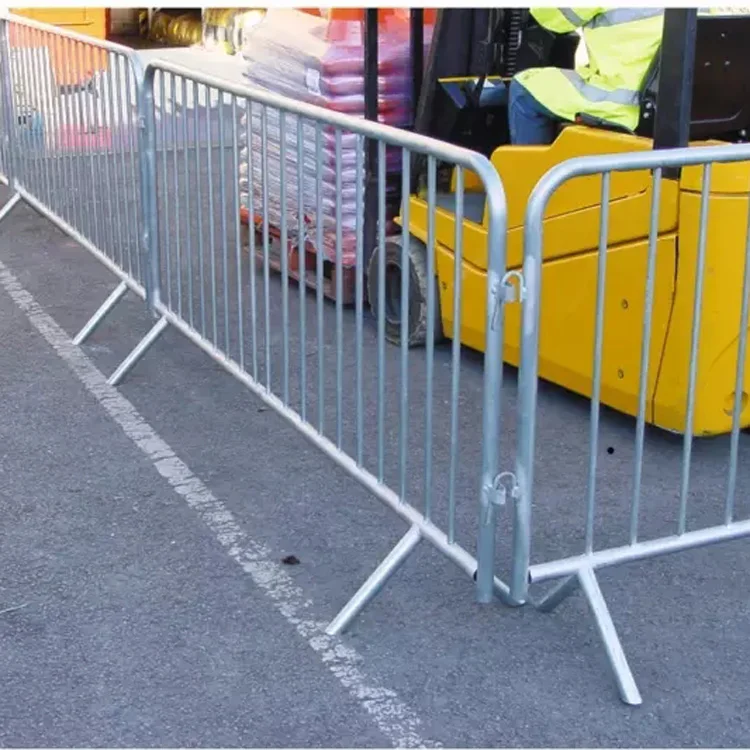

The Barricade is built from heavy gauge steel and is hot-dipped galvanized inside and out for long-term weather resistance. Frames are made from 1.5" OD 16 gauge steel tubing, while uprights are made from 1/2" OD 16 gauge steel tubing. Uprights are fully inserted into the frame before welding, providing extraordinary strength. Choose from two foot systems: a bridge foot for uneven surfaces such as grass and a flat foot for smooth surfaces such as tarmac and where pedestrian traffic demands the minimum trip hazard. The barricades interlock using the industry standard hook and half-loop fastening system.

Features

Easy to handle and remove; Strong and robust at the same time; Far more weather resistant.
Specification: Normal size
Panel Size: 1100X2100mm, 1100X2200mm, 1100X2250mm
Frame: 20mm, 25mm, 32mm, 40mm, 42mm & 48mmO. D
Infill Picket: 12mm, 14mm, 16mm, 20mm & 25mm O. D
Spacing: 60mm, 100mm, 190mm & 200mm
Finish: Hot-dipped Galvanized
Different specifications are available according to customers' special inquiry or detailed drawings.
Main markets: Australia, New Zealand, Canada, US, European countries and Asia countries.

Specification

Height: 1000mm/1100mm/1200mm/1500mm

Width: 2000mm/2200mm/2500mm

Wire thickness: 4.0mm/4.5mm/5.0mm

Frame diameter: 30mm/38mm/40mm/42mm

Inside pipe diameter: 16mm/20mm/25mm/32mm

Connection: metal hook

Base foot: metal base foot

Surface:hot dipped galvanized (505g/m2)/ electric galvanized + polyester powder coated(all colors in ral)

Different feet: cross feet, flat feet, bridge feet



Application

Mainly used for golf course,school,garden,family courtyard. Construction site,highway, stadium, zoo, hazardous area an so on.



Popular Size

Panel Size

1100X2100mm,1100X2200mm,1100X2500mm

Frame Size

 20mm,25mm,32mm,38mm,42mm,48mm O.D.

Infill Pickets

12mm,14mm,16mm,20mm,25mm O.D.

60mm,100mm,190mm,200mm spacing

Finished

Hot-dipped galvanized / Powder Coating

Feet

removable,bridge feet or flat feet

                                  Special size is available
